Bioretention Metal Planter Box Detail

Materials

Elements

Walls Floors / Slabs Foundations / Footings Drainage Site / Paving

About this detail

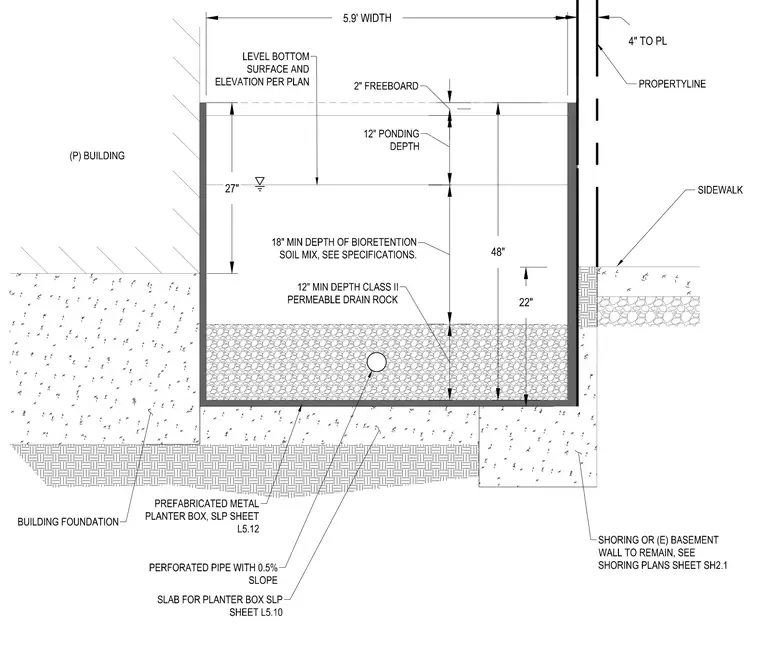

A prefabricated metal planter box is located adjacent to a building foundation and property line with an adjacent sidewalk. The assembly features an eighteen-inch minimum depth of bioretention soil mix placed over a twelve-inch minimum depth of Class II permeable drain rock. A perforated pipe with a zero-point-five percent slope runs through the drain rock layer above the slab for the planter box. Vertical dimensions indicate a fifty-nine-inch total width, a twelve-inch ponding depth, a two-inch freeboard, and a twenty-seven-inch level bottom surface elevation. The exterior wall abuts existing shoring or an existing basement wall to remain, per structural shoring plans.
