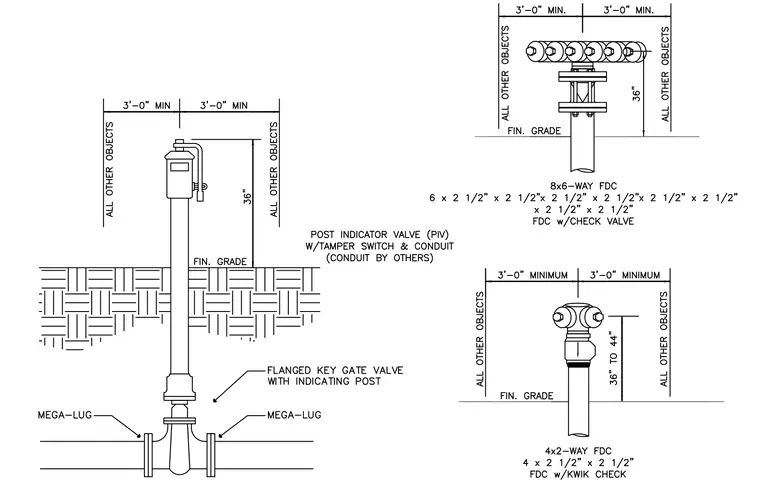

Fire department connections and a post indicator valve are detailed with required clearance zones and connection configurations. The post indicator valve features a tamper switch, conduit provided by others, and a flanged key gate valve secured with Mega-Lug mechanical joint restraints. Fire department connections include an eight-by-six-way configuration with a check valve and a four-by-two-way configuration with a kwik check. Each assembly maintains a minimum three-foot clearance from all other objects and establishes a vertical operating height ranging from thirty-six to forty-four inches above finished grade.
