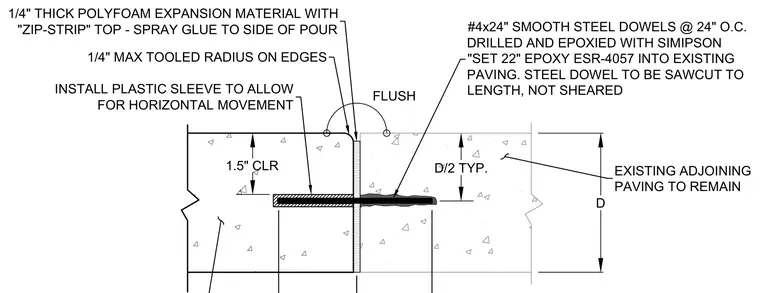

A concrete paving control joint connects a new pour to existing adjoining paving to remain. The joint features a one-quarter inch thick polyfoam expansion material with a zip-strip top spray-glued to the side of the pour. Number four by twenty-four inch smooth steel dowels are spaced at twenty-four inches on center, drilled and epoxied into the existing paving using Simpson Set 22 epoxy. These steel dowels are sawcut to length rather than sheared and fitted with a plastic sleeve to allow for horizontal movement. Concrete edges are finished with a one-quarter inch maximum tooled radius, maintaining a one-and-a-half-inch clearance.
D INSTALL PLASTIC SLEEVE TO ALLOW FOR HORIZONTAL MOVEMENT D/2 TYP. 1/4" THICK POLYFOAM EXPANSION MATERIAL WITH "ZIP-STRIP" TOP - SPRAY GLUE TO SIDE OF POUR #4x24" SMOOTH STEEL DOWELS @ 24" O.C. DRILLED AND EPOXIED WITH SIMIPSON "SET 22" EPOXY ESR-4057 INTO EXISTING PAVING. STEEL DOWEL TO BE SAWCUT TO LENGTH, NOT SHEARED EXISTING ADJOINING PAVING TO REMAIN 1/4" MAX TOOLED RADIUS ON EDGES 1.5" CLR FLUSH
