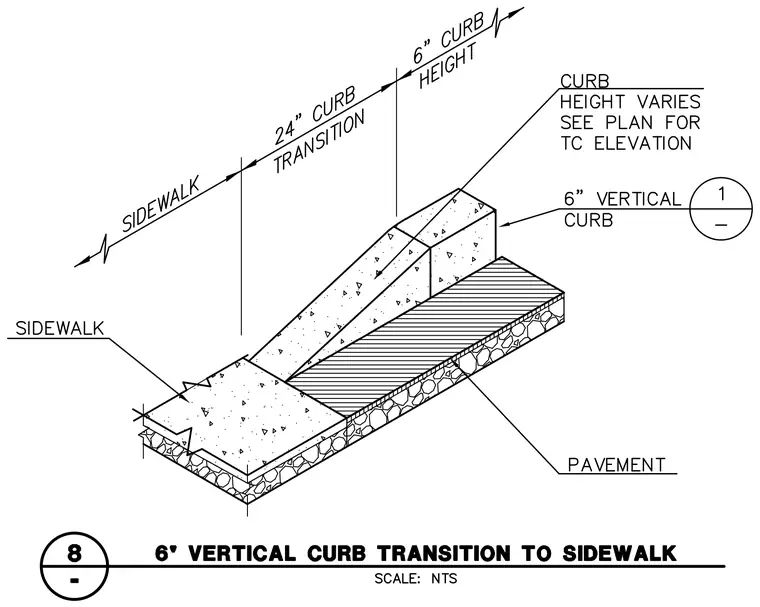

An isometric civil detail shows a concrete curb transitioning from a standard six-inch height down along a twenty-four-inch curb transition zone adjacent to a concrete sidewalk and pavement assembly. The curb height varies as specified per plan for the top of curb elevation. The concrete curb and sidewalk rest on base material and subgrade layers.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
