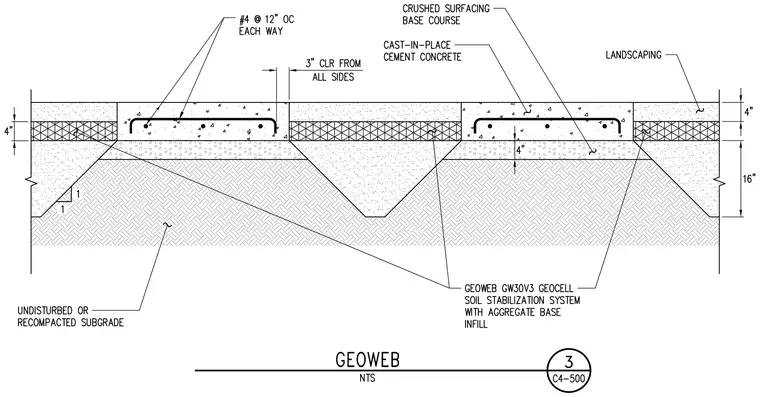

A Geoweb GW30V3 soil stabilization system with aggregate base infill is installed over an undisturbed or recompacted subgrade. The assembly incorporates a four-inch thick layer of cast-in-place cement concrete reinforced with number four reinforcing bars spaced at twelve inches on center each way, maintaining a three-inch clearance from all sides. Adjacent areas feature a crushed surfacing base course and landscaping over a sixteen-inch deep prepared subgrade profile.
