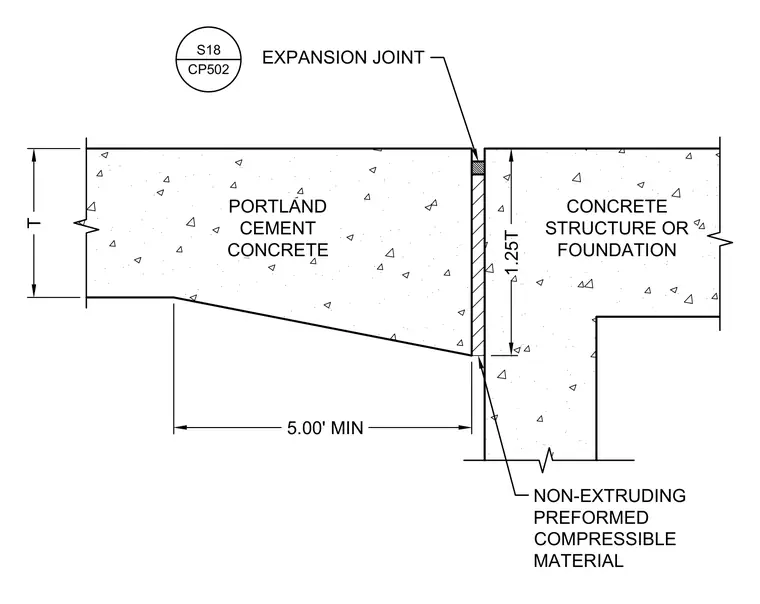

An expansion joint is formed between adjacent Portland cement concrete structures or foundations with a minimum five-foot spacing from the joint edge to a thickened section. A non-extruding preformed compressible material fills the joint opening across a depth equal to one and one-quarter times the structural thickness T.
T 1.25T NON-EXTRUDING PREFORMED COMPRESSIBLE MATERIAL 5.00' MIN EXPANSION JOINT CONCRETE STRUCTURE OR FOUNDATION PORTLAND CEMENT CONCRETE CP502 S18
