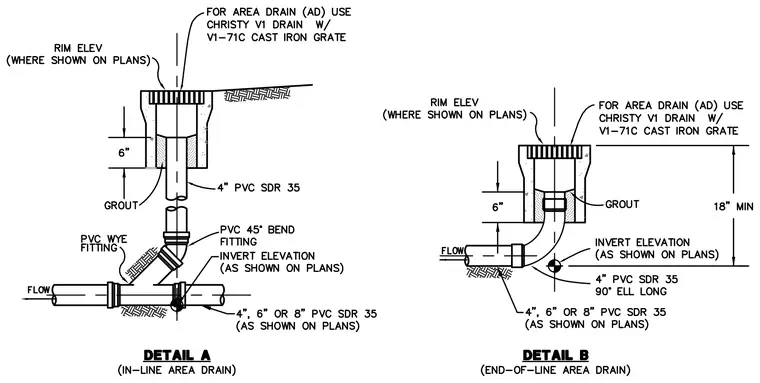

Area drains utilize a Christy V1 drain body with a V1-71C cast iron grate set to a rim elevation where shown on plans. The drain body connects via a six-inch grout embedment to a four-inch PVC SDR 35 drop pipe. In Detail A, the drop pipe transitions through a PVC 45-degree bend fitting into a PVC wye fitting tied to a four-, six-, or eight-inch PVC SDR 35 main line. In Detail B, the drop pipe transitions through a four-inch PVC SDR 35 90-degree long elbow with an invert elevation as shown on plans and a minimum depth of 18 inches to the main line.
