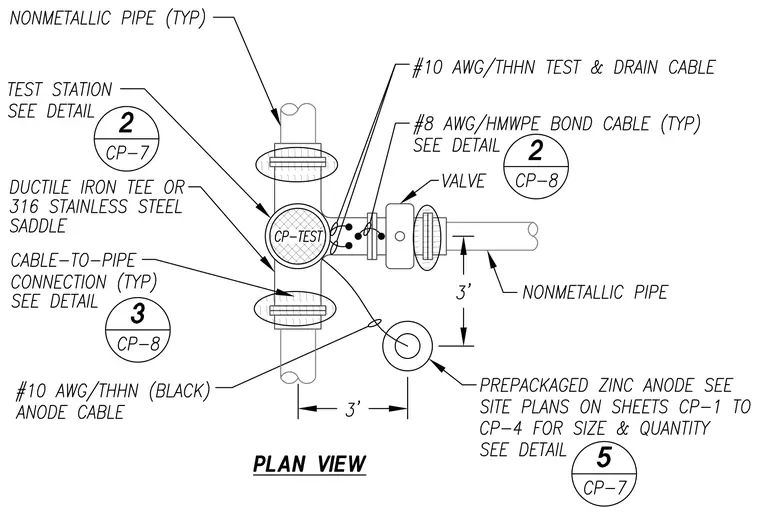

A nonmetallic pipe connects to a ductile iron tee or 316 stainless steel saddle featuring a valve and a CP-TEST station. A prepackaged zinc anode is located three feet away and links to the assembly through a number 10 American Wire Gauge THHN black anode cable. A number 10 American Wire Gauge THHN test and drain cable and a number 8 American Wire Gauge HMWPE bond cable tie into the system with typical cable-to-pipe connections.
