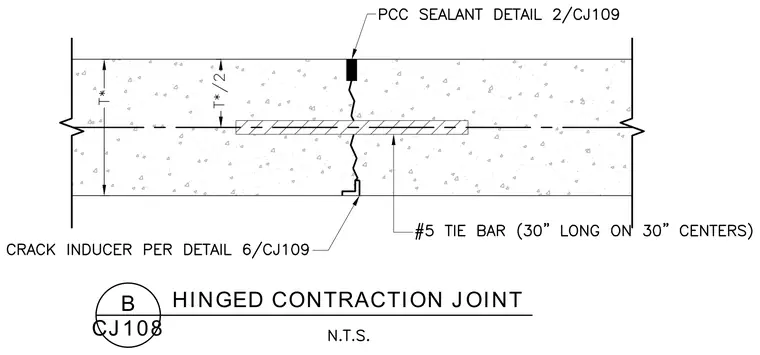

A hinged contraction joint in a concrete slab features a Portland cement concrete sealant at the top surface. A number 5 tie bar measuring thirty inches long is embedded at mid-depth on thirty-inch centers. A crack inducer is installed at the bottom of the joint.
