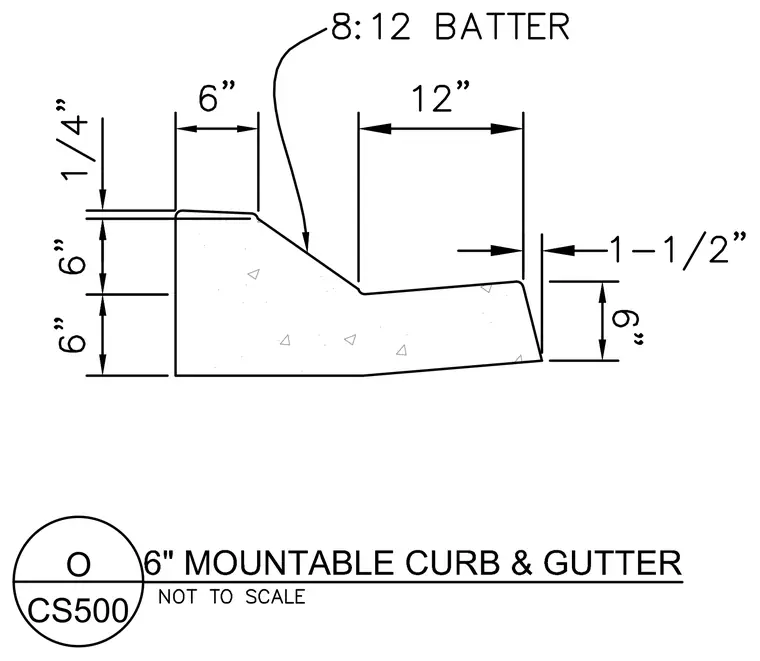

A six-inch mountable concrete curb and gutter assembly. The profile features a six-inch high back curb with a six-inch top width and an eight to twelve batter slope leading down to a twelve-inch gutter pan. The outer face slopes outward with a one and a half inch offset, and the total vertical height of the gutter face is six inches. The concrete section rests on a subgrade defined by site civil engineering specifications.
