Portland Cement Concrete Pavement

About this detail

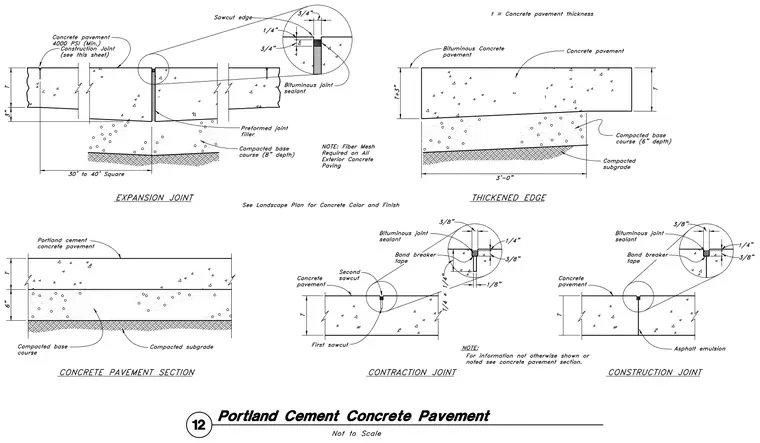

Portland cement concrete pavement details comprise expansion joints, thickened edges, standard pavement sections, contraction joints, and construction joints. The expansion joint detail includes forty-pound minimum compressive strength Portland cement concrete pavement with a sawcut edge, bituminous joint sealant, preformed joint filler, and an eight-inch compacted base course over compacted subgrade, spaced at thirty to forty foot squares. The thickened edge detail contains a thickened transition from pavement thickness T to T plus three inches over a six-inch compacted base course and compacted subgrade. The contraction joint features a first and second sawcut with a bituminous joint sealant, bond breaker tape, and a sealant reservoir measuring three-eighths of an inch wide by one-quarter inch deep. The construction joint consists of an asphalt emulsion layer and bituminous joint sealant with bond breaker tape. A general note mandates fiber mesh on all exterior concrete paving.
