Erosion control mats are laid over disturbed soil slopes with seams running up and down the slope rather than along the grade, except in narrow channels or swales. The underlying soil surface is roughened by tracking with lines perpendicular to flow before placing the mats. Mats are overlapped and secured with anchors installed per manufacturer recommendations. Erosion control mats are required on all disturbed slopes 3:1 or steeper that are not otherwise protected or scheduled to be reworked within 14 days of cessation of work.

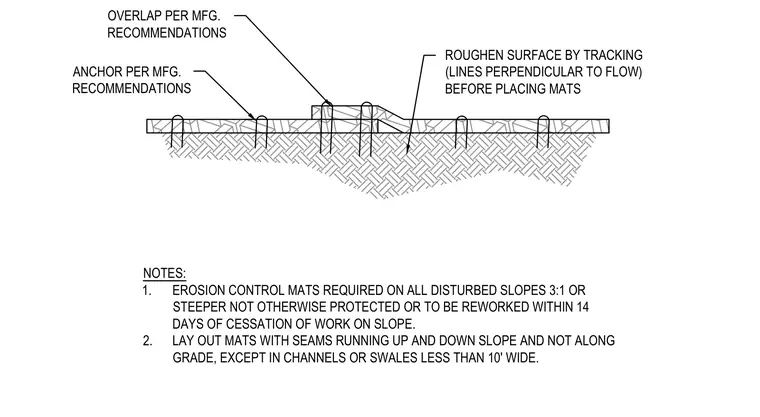

NOTES: 1. EROSION CONTROL MATS REQUIRED ON ALL DISTURBED SLOPES 3:1 OR STEEPER NOT OTHERWISE PROTECTED OR TO BE REWORKED WITHIN 14 DAYS OF CESSATION OF WORK ON SLOPE. 2. LAY OUT MATS WITH SEAMS RUNNING UP AND DOWN SLOPE AND NOT ALONG GRADE, EXCEPT IN CHANNELS OR SWALES LESS THAN 10' WIDE. OVERLAP PER MFG. RECOMMENDATIONS ANCHOR PER MFG. RECOMMENDATIONS ROUGHEN SURFACE BY TRACKING (LINES PERPENDICULAR TO FLOW) BEFORE PLACING MATS
