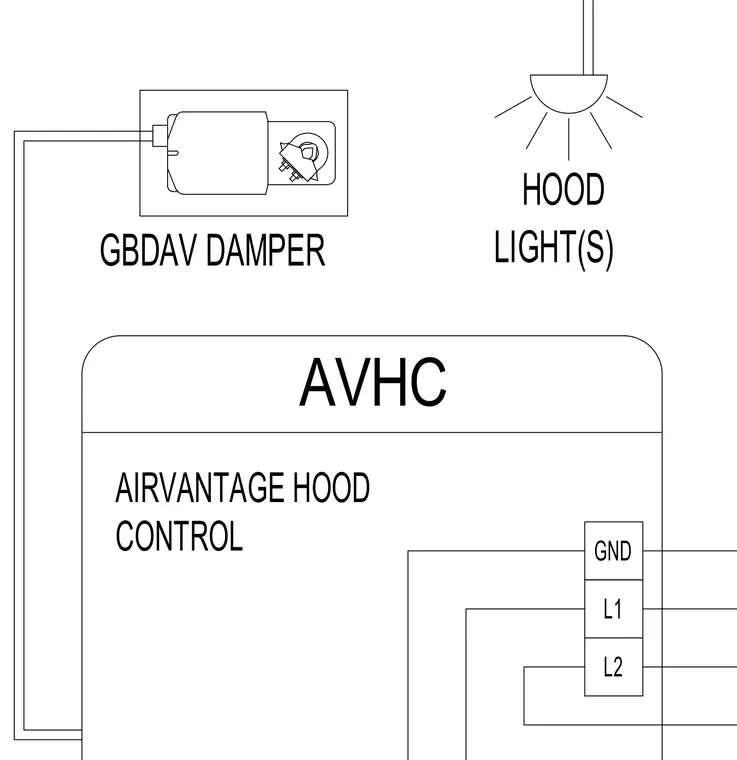

The Airvantage hood control unit integrates an AVHC module wired to a GBDAV damper, hood lights, and power supply lines including ground, line one, and line two.
