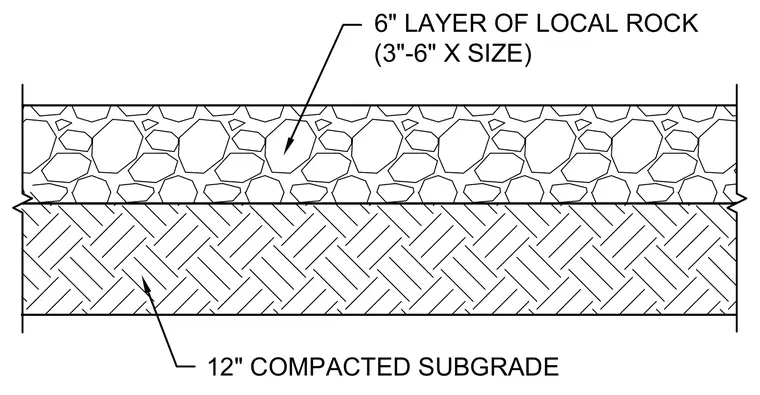

The pavement cross-section consists of a six-inch layer of local rock with three to six inch sizing resting directly on a twelve-inch compacted subgrade.
