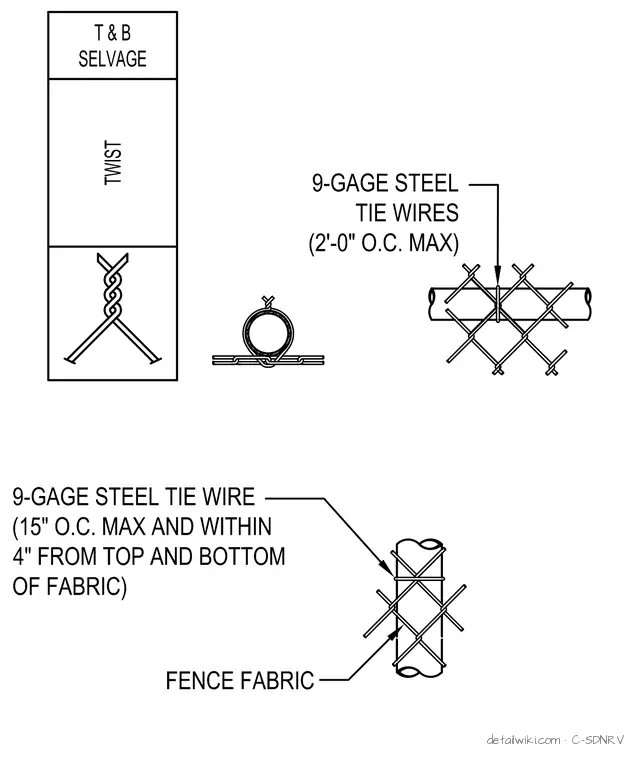

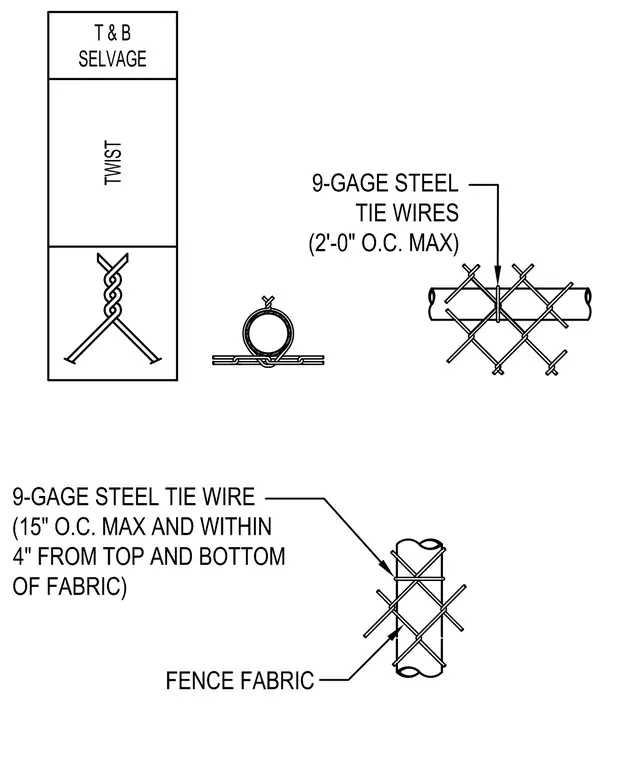

Chain link fence fabric secures to round posts with nine-gauge steel tie wires. Tie wires space at a maximum of two feet on center for horizontal rails. Tie wires space at a maximum of fifteen inches on center for vertical posts, with additional ties required within four inches of the top and bottom of the fabric. The fence fabric features a twisted top and bottom selvage.
