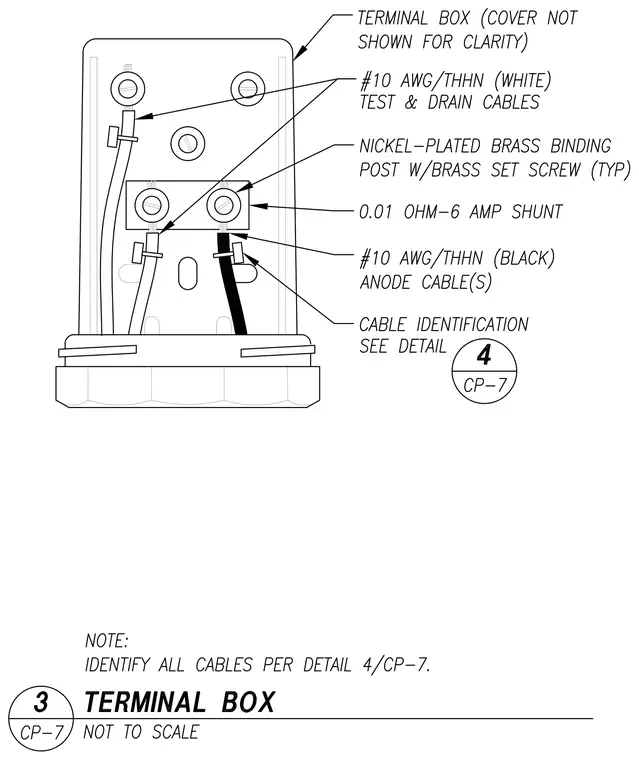

A cathodic protection terminal box features the cover omitted for clarity. A 0.01 ohm, 6 amp shunt is mounted using nickel-plated brass binding posts with typical brass set screws. White #10 American Wire Gauge THHN test and drain cables and black #10 American Wire Gauge THHN anode cables connect to the terminals. All cables feature identification tags as referenced in detail 4 on sheet CP-7.
