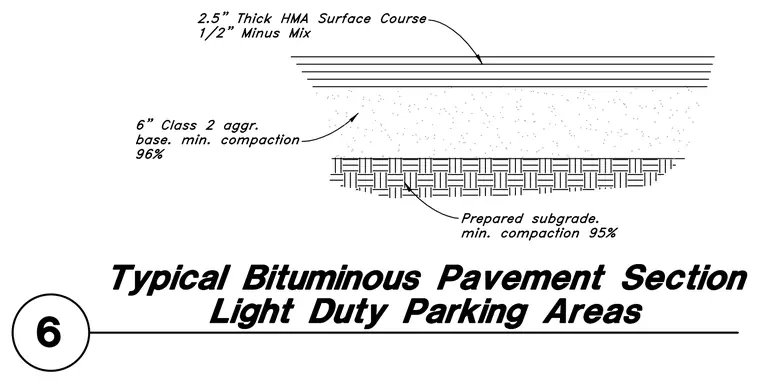

A two and one-half inch thick hot mix asphalt surface course using a one-half inch minus mix rests atop a six-inch Class 2 aggregate base with a minimum compaction of ninety-six percent. The aggregate base bears directly on a prepared subgrade compacted to a minimum of ninety-five percent.
