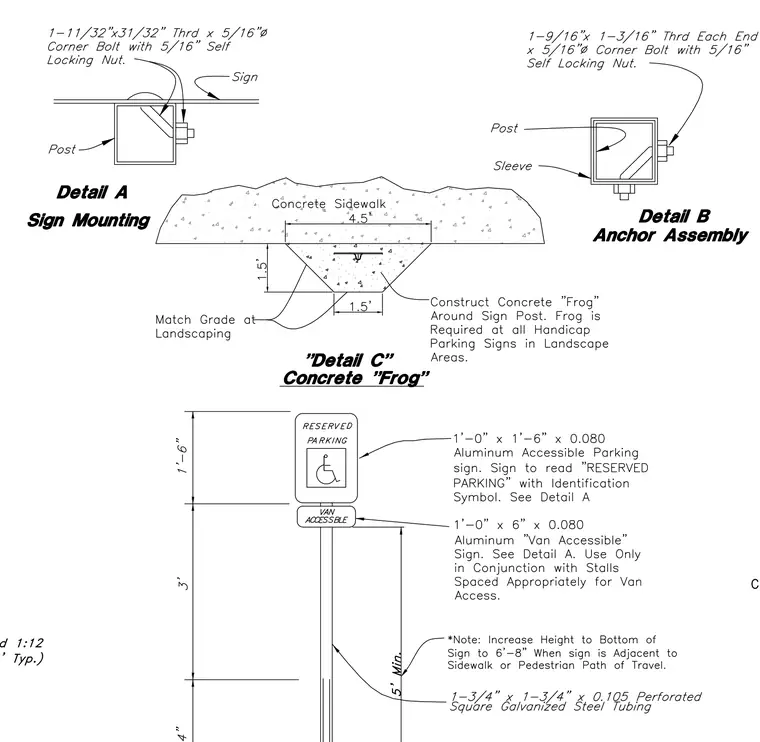

An aluminum accessible parking sign measuring one foot by one foot six inches by zero point zero eighty inches and a van accessible sign measuring one foot by six inches by zero point zero eighty inches mount to a one and three-quarter inch square galvanized steel tubing post with zero point one hundred five inch wall thickness. The post connects via corner bolts with self-locking nuts and inserts into a sleeve or directly into a cast-in-place concrete sidewalk foundation with a concrete frog at landscape areas. The sign height maintains a five-foot minimum clearance to the bottom of the sign, increased to six feet eight inches when adjacent to a pedestrian path of travel.
