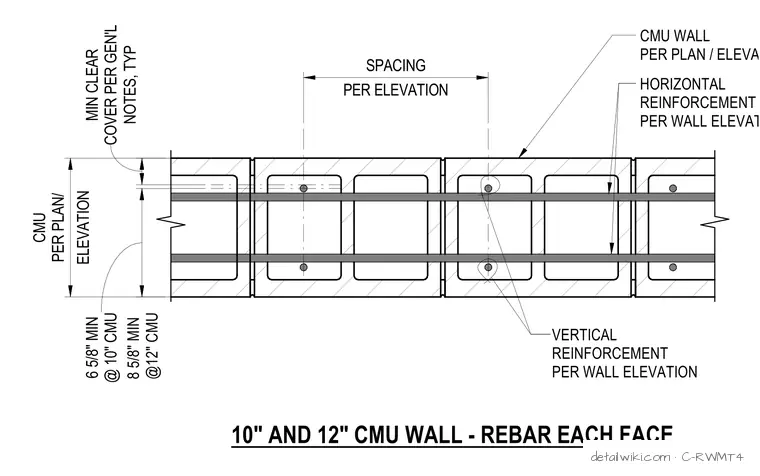

The drawing shows a horizontal section through a CMU wall detailing the placement of vertical and horizontal reinforcing bars. Callouts indicate minimum clear cover, spacing per elevation, and the specific rebar layout for 10-inch and 12-inch masonry units. This configuration ensures structural integrity and proper load distribution in reinforced masonry walls.
Text on the drawing
10" AND 12" CMU WALL - REBAR EACH FACE ELEVATION CMU PER PLAN/ CMU WALL PER PLAN / ELEVATION HORIZONTAL REINFORCEMENT PER WALL ELEVATION VERTICAL REINFORCEMENT PER WALL ELEVATION NOTES, TYP MIN CLEAR COVER PER GEN'L PER ELEVATION SPACING 6 5/8" MIN @ 10" CMU 8 5/8" MIN @12" CMU
