An existing utility tunnel remains in place as approximately shown, housing existing power lines per survey. An existing storm line is located at the bottom of the utility tunnel according to record drawings. A proposed 8-inch hydrant lateral is coordinated in proximity to these existing subsurface utilities.

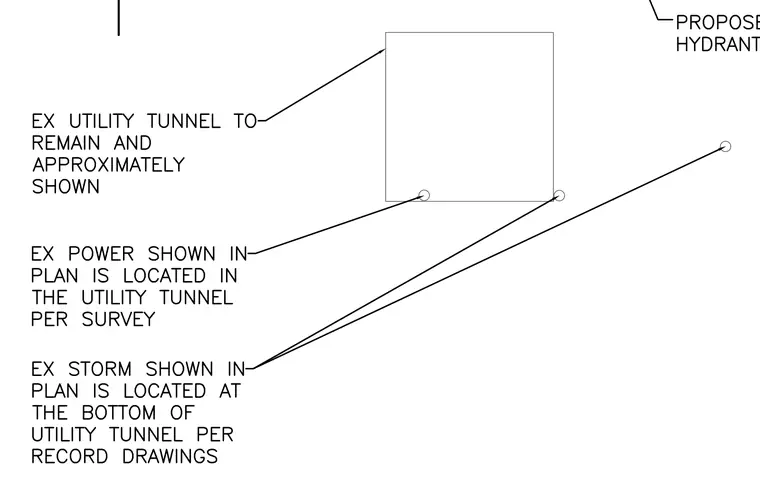

EX STORM SHOWN IN PLAN IS LOCATED AT THE BOTTOM OF UTILITY TUNNEL PER RECORD DRAWINGS EX UTILITY TUNNEL TO REMAIN AND APPROXIMATELY SHOWN EX POWER SHOWN IN PLAN IS LOCATED IN THE UTILITY TUNNEL PER SURVEY PROPOSED 8" HYDRANT LATERAL
