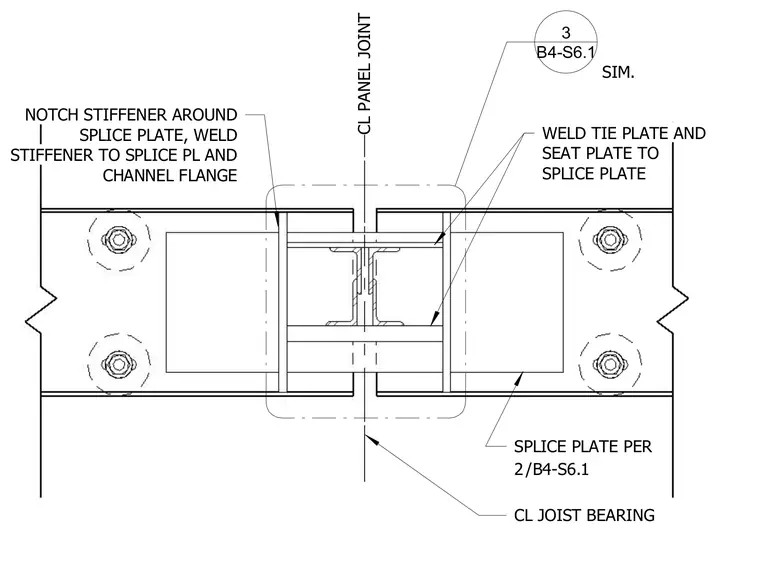

A structural steel joist seat connects across a panel joint using a centerline splice plate. The tie plate and seat plate are welded directly to the splice plate. A stiffener plate is notched around the splice plate and welded to both the splice plate and the channel flange. Fasteners secure the assembly at the beam flanges.
CL JOIST BEARING SPLICE PLATE PER / 2 B4-S6.1 B4-S6.1 3 SIM. WELD TIE PLATE AND SEAT PLATE TO SPLICE PLATE NOTCH STIFFENER AROUND SPLICE PLATE, WELD STIFFENER TO SPLICE PL AND CHANNEL FLANGE CL PANEL JOINT
