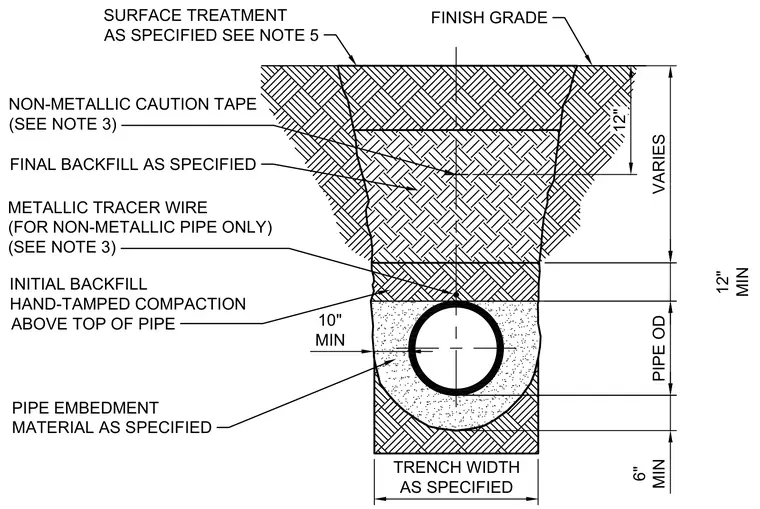

Standard trench profile and bedding requirements for underground utility piping. The trench is excavated to a specified width with a minimum six-inch embedment material layer supporting the pipe below. Initial backfill with hand-tamped compaction extends ten inches minimum above the top of the pipe. A metallic tracer wire is installed directly above the initial backfill for non-metallic pipe applications, followed by a non-metallic caution tape placed twelve inches below the final grade. Final backfill and surface treatments are applied to meet specified project requirements up to the finish grade.
6" MIN 10" MIN 12" MIN VARIES FINAL BACKFILL AS SPECIFIED SURFACE TREATMENT AS SPECIFIED SEE NOTE 5 INITIAL BACKFILL HAND-TAMPED COMPACTION ABOVE TOP OF PIPE PIPE EMBEDMENT MATERIAL AS SPECIFIED PIPE OD FINISH GRADE TRENCH WIDTH AS SPECIFIED NON-METALLIC CAUTION TAPE (SEE NOTE 3) METALLIC TRACER WIRE (FOR NON-METALLIC PIPE ONLY) (SEE NOTE 3) 12"
