Civil · C-RSF9X

Existing Structure Wall Modification and Raising Detail

Materials

Concrete Masonry / CMU Brick Glass / Glazing

Elements

Walls Floors / Slabs Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

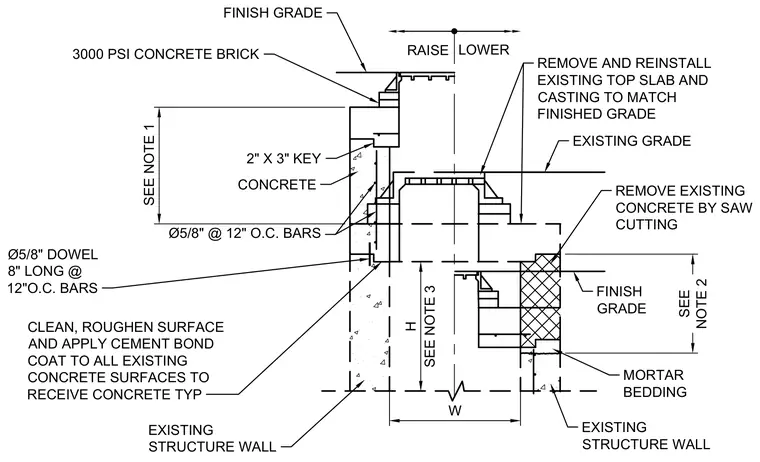

Existing concrete surfaces are cleaned, roughened, and coated with a cement bond coat to receive new concrete with a two-inch by three-inch key. Five-eighths-inch diameter dowels eight inches long are embedded at twelve inches on center alongside vertical reinforcement bars spaced at twelve inches on center. The assembly incorporates three-thousand psi concrete, brick, mortar bedding, and adjustable finish grade elevations. Existing concrete is removed by saw cutting, and existing top slabs and castings are removed and reinstalled to match the new finished grade.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
