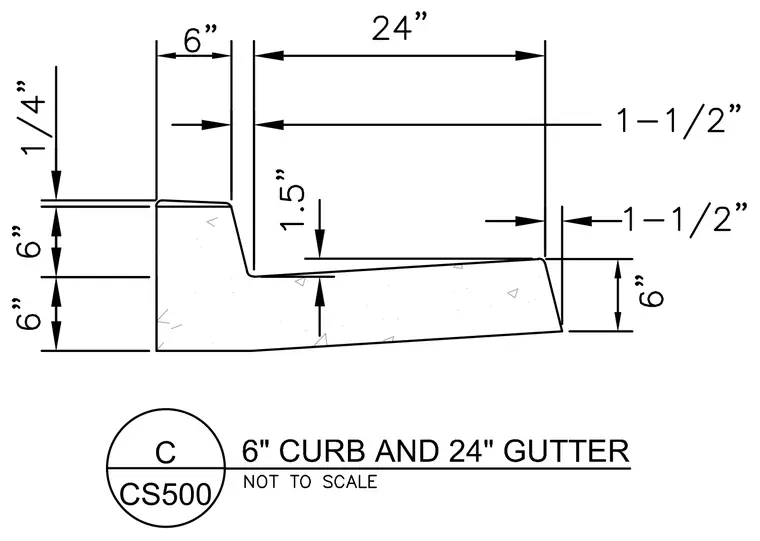

A standard cast-in-place concrete curb and gutter profile. The assembly features a six-inch high vertical curb face with a six-inch top width and an overall base thickness dimensioned at twelve inches. The adjacent drainage gutter spans twenty-four inches with a cross-slope drop of one and one-half inches toward the flowline. Side slopes and edge dimensions provide constructability tolerances for pavement transitions and stormwater drainage coordination.
