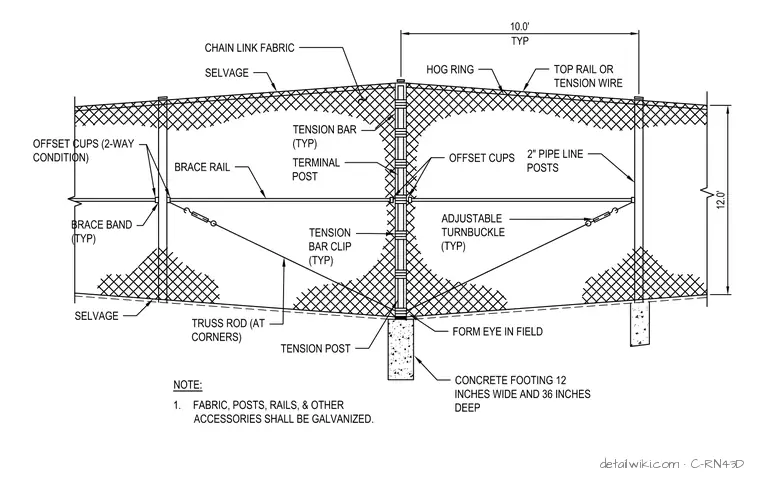

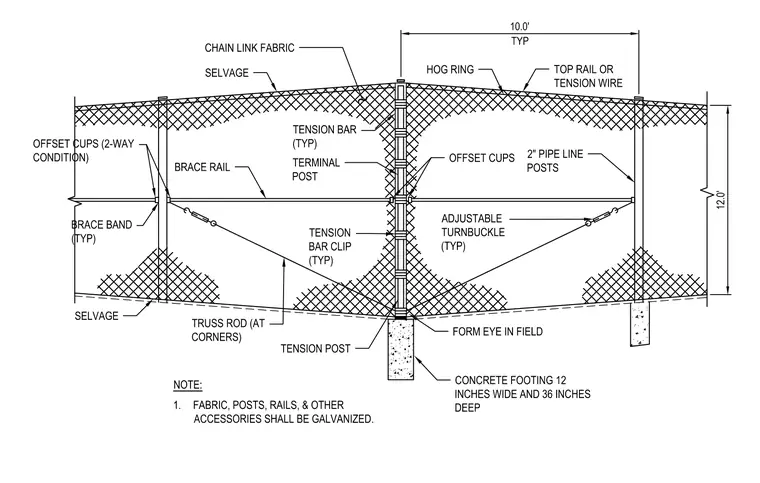

This assembly utilizes a central terminal post supported by a 12-inch wide by 36-inch deep concrete footing. The chain link fabric is secured to the terminal post using tension bars and tension bar clips, with the top edge finished with a selvage and hog rings attached to a top rail or tension wire. Brace rails connect to the terminal post via offset cups and brace bands, providing lateral stability. Diagonal truss rods are installed at the corners, tensioned with adjustable turnbuckles that hook into an eye formed in the field at the base of the terminal post. Two-inch diameter pipe line posts are spaced at 10 feet on center, and all fabric, posts, rails, and accessories are specified to be galvanized.
