Structural · C-RKV59

Heavy Steel Column Base Plate Plan

Materials

Concrete Masonry / CMU

Elements

Columns

Connections

Welded Connection

About this detail

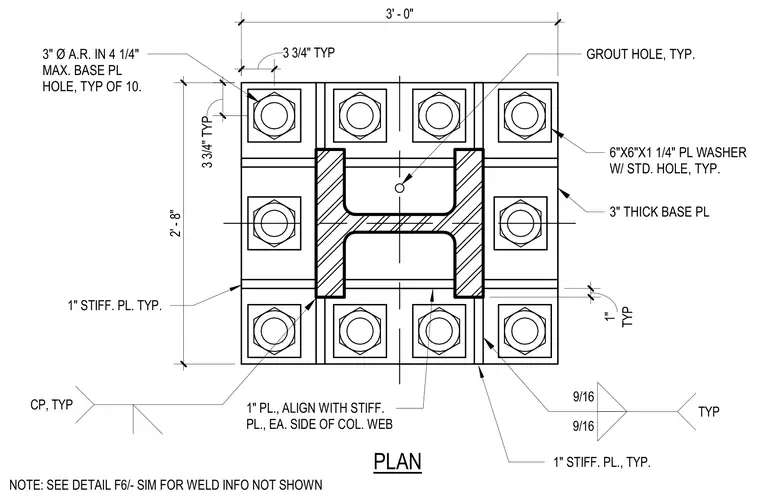

A structural steel column base plate plan features a three-foot by two-foot-eight-inch rectangular base plate measuring three inches in thickness welded around an H-shaped column profile. Ten anchor rods of three-inch diameter are positioned within four-and-a-quarter-inch maximum base plate holes, each paired with a six-inch by six-inch by one-and-one-quarter-inch plate washer featuring a standard hole. One-inch stiffener plates are welded typically around the perimeter, aligning with additional one-inch plates placed on each side of the column web. A central grout hole is provided, and weld information refers to a related detail.
