A subsurface sand and grease trap installation beds in native soil. A twelve-inch diameter high-density polyethylene or polyvinyl chloride perforated pipe at zero percent slope receives flow from the sand and grease trap. The trench contains a bottom layer of ASTM C33 filter sand topped with two-inch washed drain rock or chips. A four ounce per square yard filter fabric wraps the perimeter of the facility. Minimum vertical clearances include one foot of cover, a variable depth per plan, one and a half feet of sand thickness, and one and a half feet to the water table.

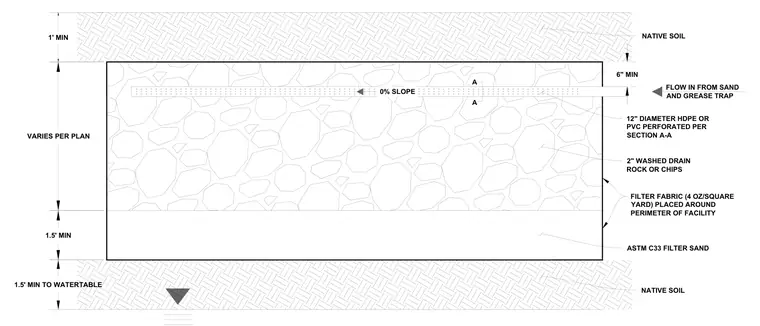

1' MIN VARIES PER PLAN 1.5' MIN 6" MIN 2" WASHED DRAIN ROCK OR CHIPS ASTM C33 FILTER SAND NATIVE SOIL 12" DIAMETER HDPE OR PVC PERFORATED PER SECTION A-A NATIVE SOIL FLOW IN FROM SAND AND GREASE TRAP A A 0% SLOPE FILTER FABRIC (4 OZ/SQUARE YARD) PLACED AROUND PERIMETER OF FACILITY 1.5' MIN TO WATERTABLE
