A structural steel connection joins a channel member framing into the web of a wide flange beam using a two-bolt connection. The supporting wide flange member receives the framing channel, which is sized per plan. A two-bolt layout secures the connection assembly.

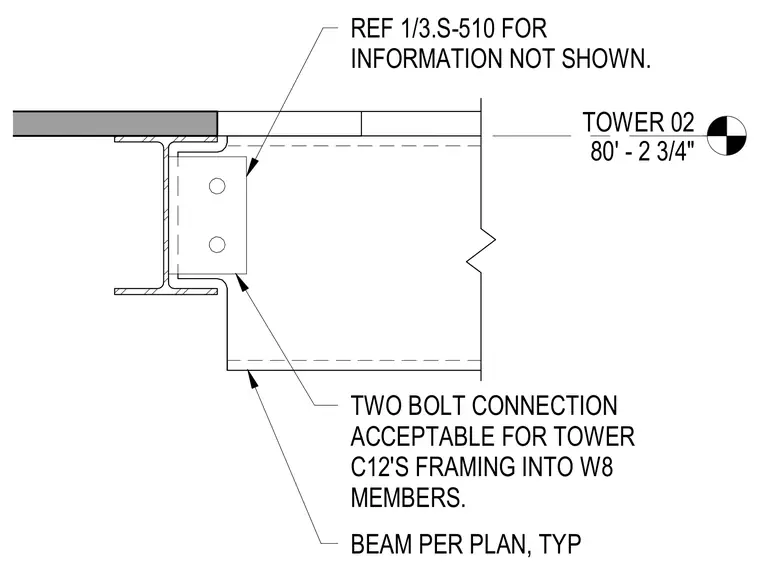

TOWER 02 80' - 2 3/4" TWO BOLT CONNECTION ACCEPTABLE FOR TOWER C12'S FRAMING INTO W8 MEMBERS. REF 1/3.S-510 FOR INFORMATION NOT SHOWN. BEAM PER PLAN, TYP
