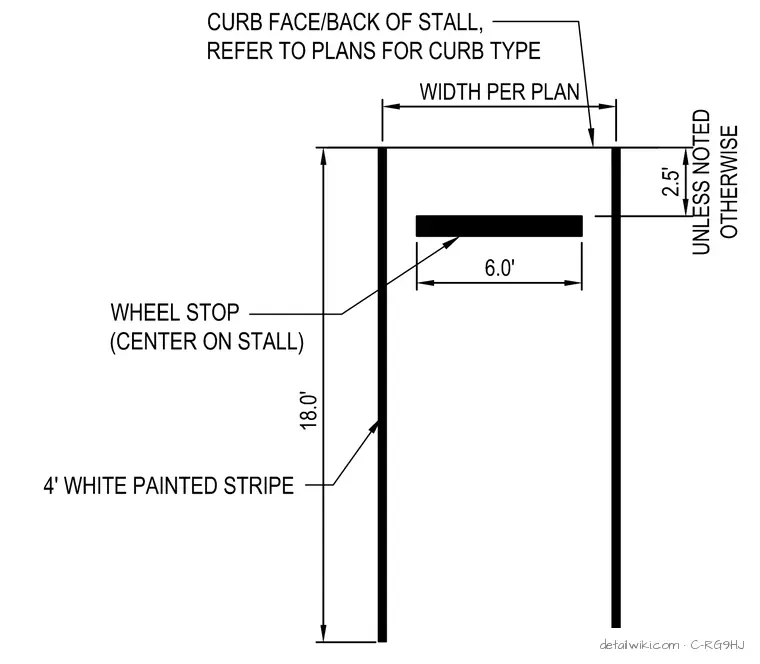

This layout defines a standard parking stall with an overall length of 18 feet and a stall width determined by the site plan. A 6-foot long wheel stop is centered within the stall, positioned 2.5 feet from the curb face or back of the stall unless otherwise noted. The stall boundaries are defined by 4-inch wide painted stripes. Curb types are to be verified against the project site plans.
