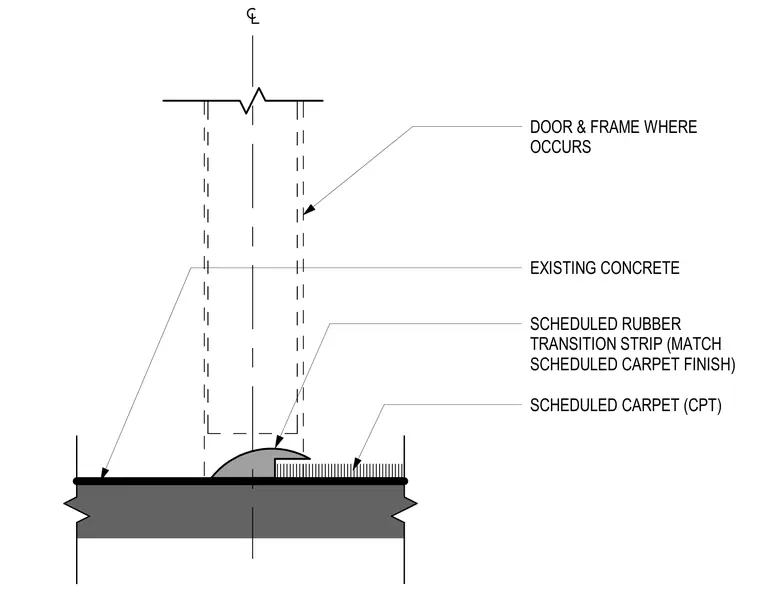

Scheduled carpet flooring transitions to an existing concrete substrate utilizing a scheduled rubber transition strip matching the carpet finish. A door and frame assembly is positioned above the transition where required. The detail provides a clean floor finish junction over the structural concrete slab.
EXISTING CONCRETE SCHEDULED RUBBER TRANSITION STRIP (MATCH SCHEDULED CARPET FINISH) SCHEDULED CARPET (CPT) DOOR & FRAME WHERE OCCURS
