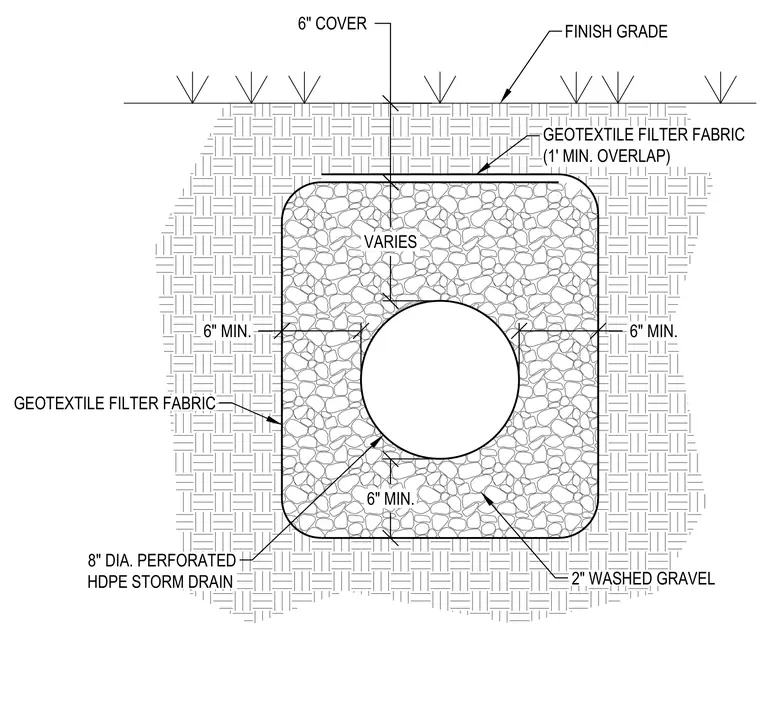

An eight-inch diameter perforated high-density polyethylene storm drain is bedded within a trench of two-inch washed gravel. The gravel bed maintains a minimum clearance of six inches on the sides and bottom relative to the pipe. A layer of geotextile filter fabric completely envelops the gravel bed, requiring a one-foot minimum overlap at all seams. A six-inch soil cover sits above the fabric layer, reaching up to the varying finish grade.
8" DIA. PERFORATED HDPE STORM DRAIN 2" WASHED GRAVEL GEOTEXTILE FILTER FABRIC 6" COVER FINISH GRADE VARIES 6" MIN. 6" MIN. 6" MIN. GEOTEXTILE FILTER FABRIC (1' MIN. OVERLAP)
