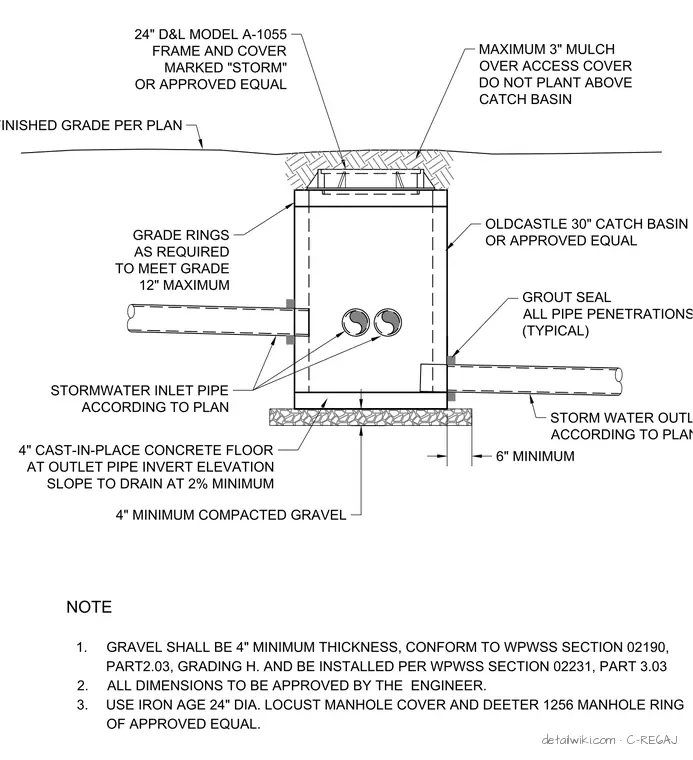

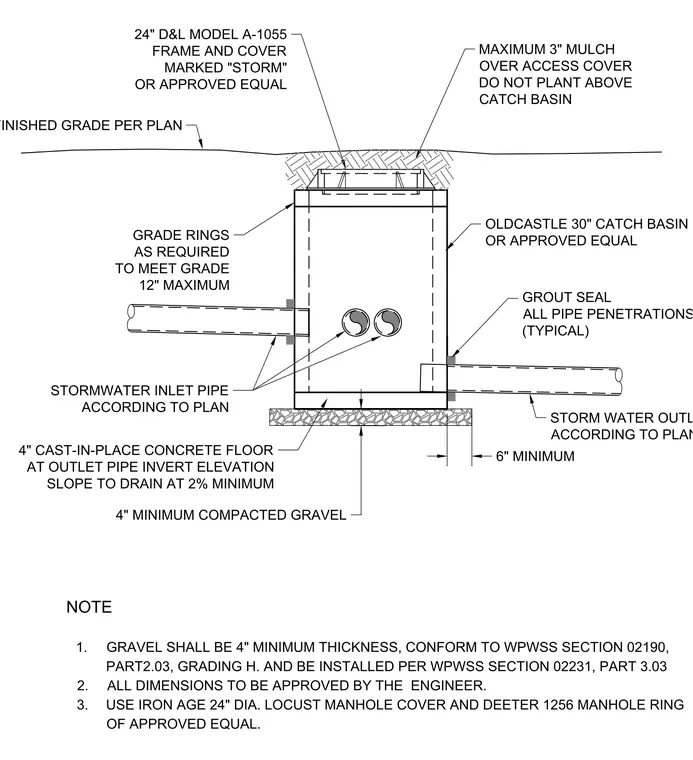

This assembly consists of a thirty-inch Oldcastle catch basin or approved equal, set upon a four-inch minimum compacted gravel base. The structure is topped with grade rings, limited to a twelve-inch maximum height, to reach the finished grade. A twenty-four-inch D&L model A-1055 frame and cover marked "STORM" is installed at the surface, with a maximum of three inches of mulch allowed over the cover. Stormwater inlet and outlet pipes are connected to the basin, with all pipe penetrations sealed with grout. A four-inch cast-in-place concrete floor is provided at the outlet pipe invert elevation, sloped to drain at a two percent minimum.
Text on the drawing
NOT TO SCALE STORMWATER CATCH BASIN DETAIL GRADE RINGS AS REQUIRED TO MEET GRADE 12" MAXIMUM OLDCASTLE 30" CATCH BASIN OR APPROVED EQUAL 4" MINIMUM COMPACTED GRAVEL STORM WATER OUTLET PIPE ACCORDING TO PLAN GROUT SEAL ALL PIPE PENETRATIONS (TYPICAL) 6" MINIMUM NOTE 1. GRAVEL SHALL BE 4" MINIMUM THICKNESS, CONFORM TO WPWSS SECTION 02190, PART2.03, GRADING H. AND BE INSTALLED PER WPWSS SECTION 02231, PART 3.03 2. ALL DIMENSIONS TO BE APPROVED BY THE ENGINEER. 3. USE IRON AGE 24" DIA. LOCUST MANHOLE COVER AND DEETER 1256 MANHOLE RING OF APPROVED EQUAL. FINISHED GRADE PER PLAN MAXIMUM 3" MULCH OVER ACCESS COVER DO NOT PLANT ABOVE CATCH BASIN 24" D&L MODEL A-1055 FRAME AND COVER MARKED "STORM" OR APPROVED EQUAL 4" CAST-IN-PLACE CONCRETE FLOOR AT OUTLET PIPE INVERT ELEVATION SLOPE TO DRAIN AT 2% MINIMUM STORMWATER INLET PIPE ACCORDING TO PLAN C401 7
