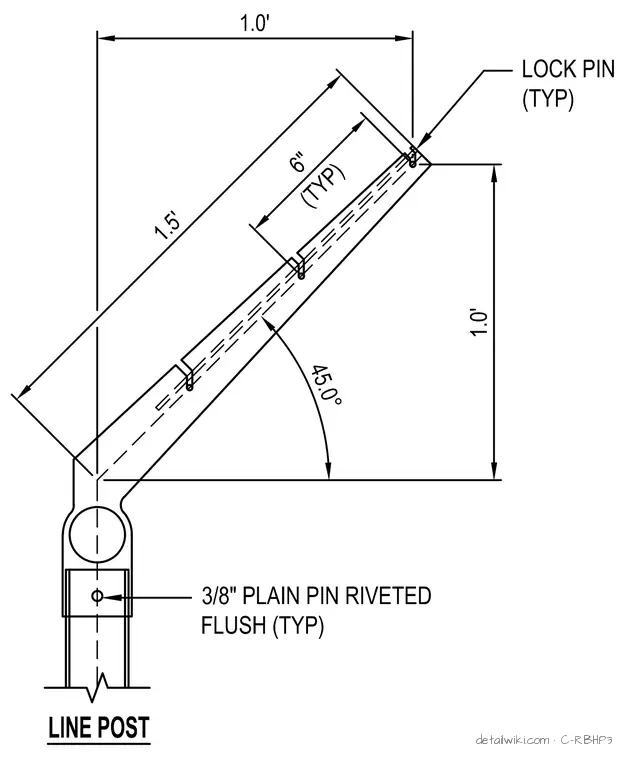

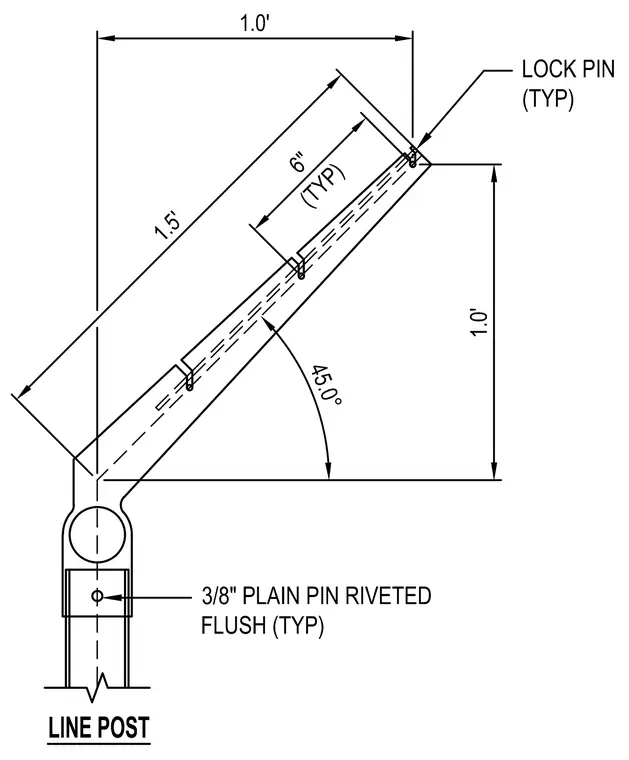

This assembly features an angled extension arm mounted to a vertical line post via a three-eighths inch diameter plain pin, which is riveted flush. The extension arm is set at a forty-five degree angle from the horizontal plane. Lock pins are installed at six-inch typical intervals along the length of the extension arm to secure the assembly. The overall reach of the extension arm is one and a half feet, with a horizontal projection of one foot and a vertical rise of one foot.
