The contractor removes the existing trench drain grate, places geotextile fabric beneath it, resets the grate, and retightens the bolts. This installation secures temporary geotextile fabric directly below the existing trench drain grate to filter debris during construction activities.

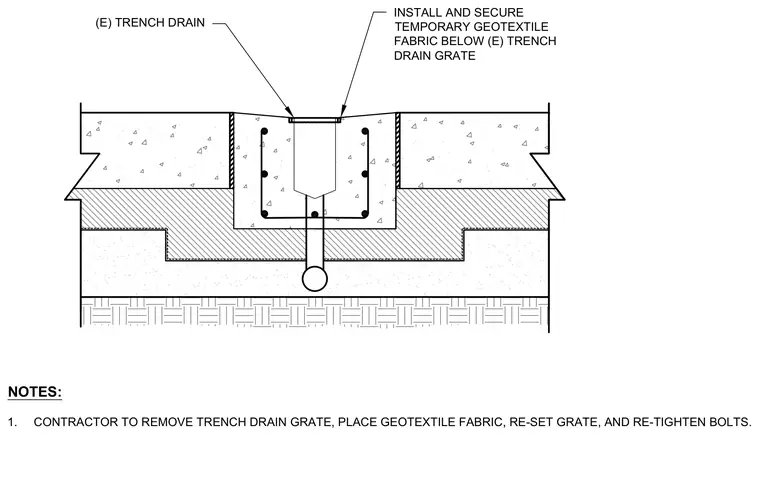

NOTES: 1. CONTRACTOR TO REMOVE TRENCH DRAIN GRATE, PLACE GEOTEXTILE FABRIC, RE-SET GRATE, AND RE-TIGHTEN BOLTS. INSTALL AND SECURE TEMPORARY GEOTEXTILE FABRIC BELOW (E) TRENCH DRAIN GRATE (E) TRENCH DRAIN
