Civil · C-R99DY

Heavy-Duty Rigid Pavement Section

Materials

Elements

About this detail

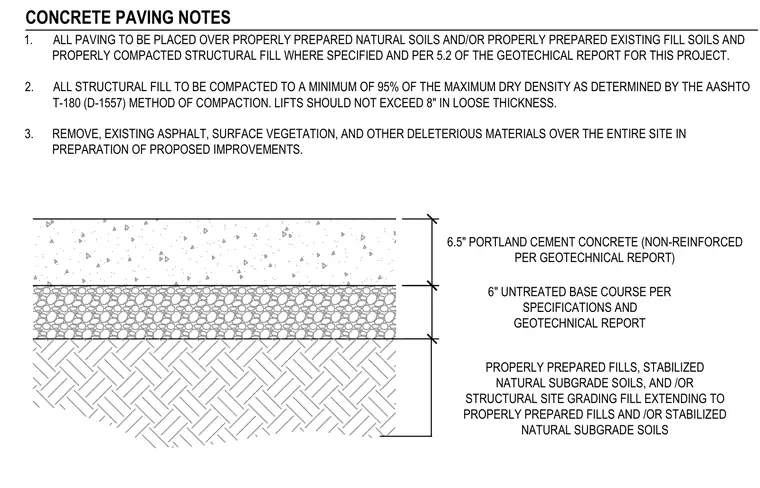

This heavy-duty rigid pavement assembly consists of a six-and-a-half-inch non-reinforced Portland cement concrete slab placed over a six-inch untreated base course. The base course rests on properly prepared fills, stabilized natural subgrade soils, and structural site grading fill. All paving must be placed over properly prepared natural or existing fill soils compacted to a minimum of ninety-five percent of the maximum dry density determined by the AASHTO T-180 method in lifts not exceeding eight inches in loose thickness. All existing asphalt, surface vegetation, and deleterious materials must be completely removed from the entire site prior to placement.
