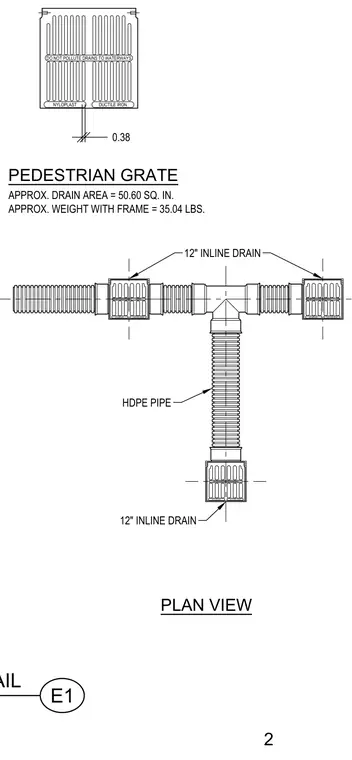

A twelve-inch high-density polyethylene inline drain connects to high-density polyethylene piping networks with a ductile iron pedestrian grate. The grate features an approximate drain area of fifty and sixty-hundredths square inches and an approximate weight with frame of thirty-five and four-hundredths pounds, bearing the warning message not to pollute drains to waterways. The assembly routes site drainage through corrugated high-density polyethylene pipes and inline catch basin structures.
2 APPROX. DRAIN AREA = 50.60 SQ. IN. APPROX. WEIGHT WITH FRAME = 35.04 LBS. PLAN VIEW PEDESTRIAN GRATE DUCTILE IRON DO NOT POLLUTE DRAINS TO WATERWAYS NYLOPLAST 0.38 DUCTILE IRON DO NOT POLLUTE DRAINS TO WATERWAYS NYLOPLAST DUCTILE IRON DO NOT POLLUTE DRAINS TO WATERWAYS NYLOPLAST DUCTILE IRON DO NOT POLLUTE DRAINS TO WATERWAYS NYLOPLAST 12" INLINE DRAIN 12" INLINE DRAIN HDPE PIPE HDPE INLINE DRAIN DETAIL E1
