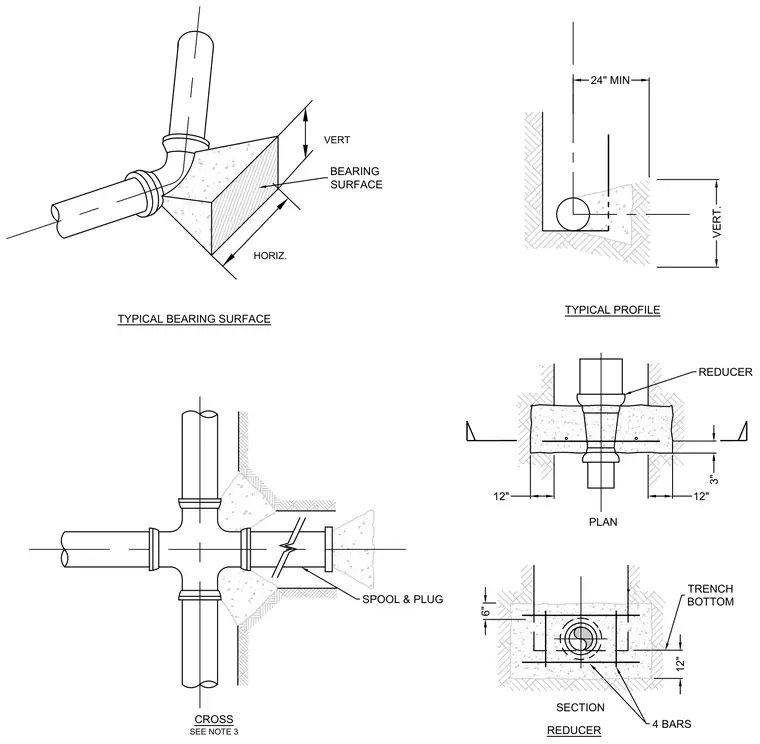

Typical bearing surfaces, profiles, crosses, reducers, and trench bottom configurations for underground piping installations. Concrete thrust blocks and bearing pads are designed to resist fitting thrust loads with specified horizontal and vertical dimensions. Reinforcing bars are detailed within the trench bottom and concrete encasement around the reducer fittings. Spools and plugs are positioned at pipe terminations within the trench layout.
12" REDUCER TRENCH BOTTOM 4 BARS BEARING SURFACE HORIZ. VERT TYPICAL BEARING SURFACE TYPICAL PROFILE CROSS SEE NOTE 3 SECTION REDUCER PLAN SPOOL & PLUG 24" MIN VERT. 6" 12" 12" 3"
