Civil · C-R3KW3

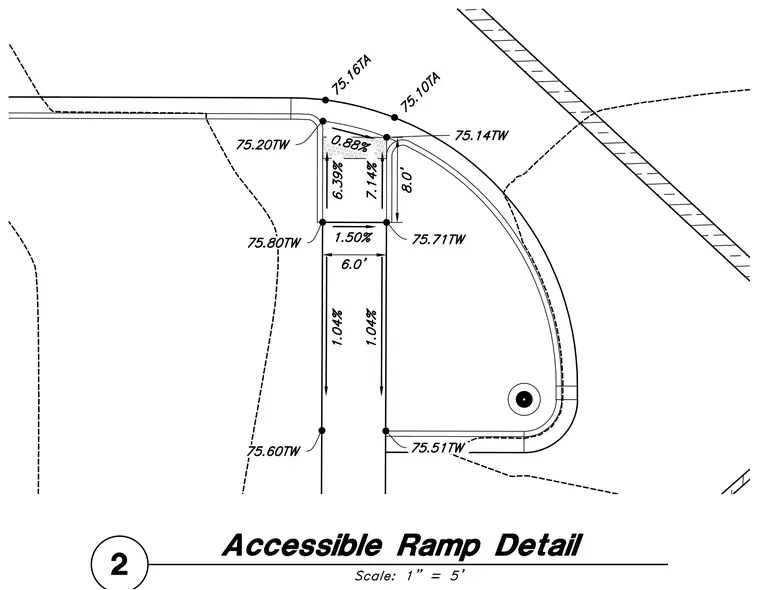

Accessible Ramp Detail

About this detail

An accessible ramp layout features top-of-wall elevation markers, slope percentages, and dimensional widths for pedestrian circulation. The upper landing connects to a ramp run with a width of 6.0 feet and slopes of 1.04 percent along the run, while cross slopes and landing transitions are marked with specific grades of 0.88 percent, 1.50 percent, 6.39 percent, and 7.14 percent. Top-of-wall elevations including 75.16TA, 75.10TA, 75.14TW, 75.20TW, 75.80TW, 75.71TW, 75.60TW, and 75.51TW establish vertical control points across the curved and linear segments. A length of 8.0 feet defines a transition or landing dimension, and the drawing is scaled at 1 inch equals 5 feet.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
