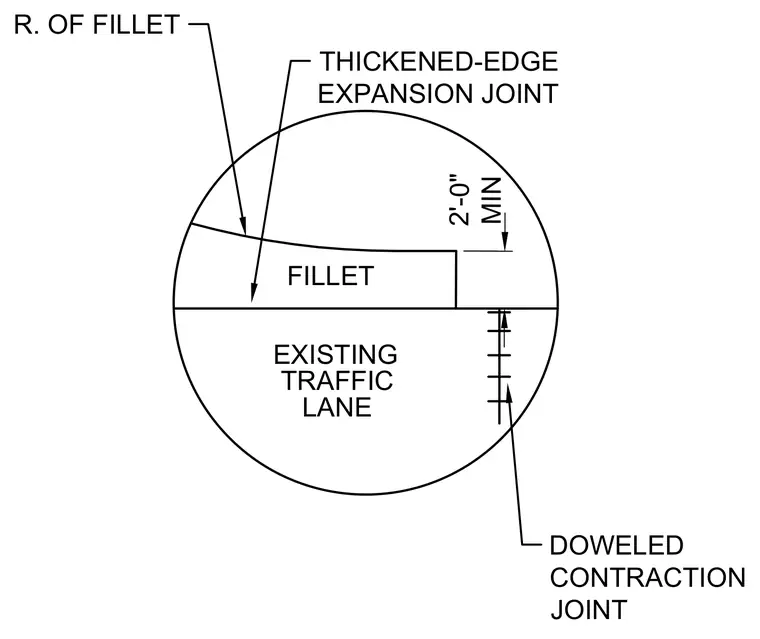

A concrete fillet is constructed adjacent to an existing traffic lane, featuring a thickened-edge expansion joint and a doweled contraction joint. A two-foot minimum thickness transition zone is located at the pavement edge. Dowels span across the contraction joint to transfer load between the pavement sections.
LANE TRAFFIC EXISTING FILLET R. OF FILLET THICKENED-EDGE EXPANSION JOINT DOWELED CONTRACTION JOINT 2'-0" MIN
