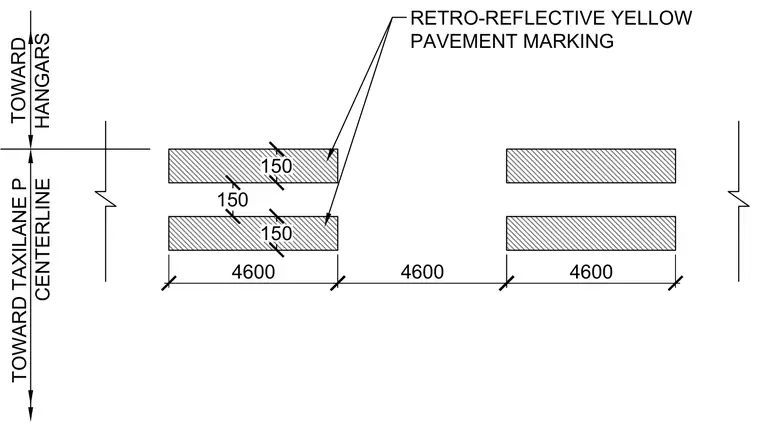

Retro-reflective yellow pavement markings are laid out with 150 millimeter striping dimensions and 4600 millimeter spacing configurations oriented toward hangars and the taxilane centerline.
4600 4600 4600 TOWARD HANGARS TOWARD TAXILANE P CENTERLINE RETRO-REFLECTIVE YELLOW PAVEMENT MARKING 150 150 150
