Civil · C-R2W75

Dumpster Apron

Materials

Elements

About this detail

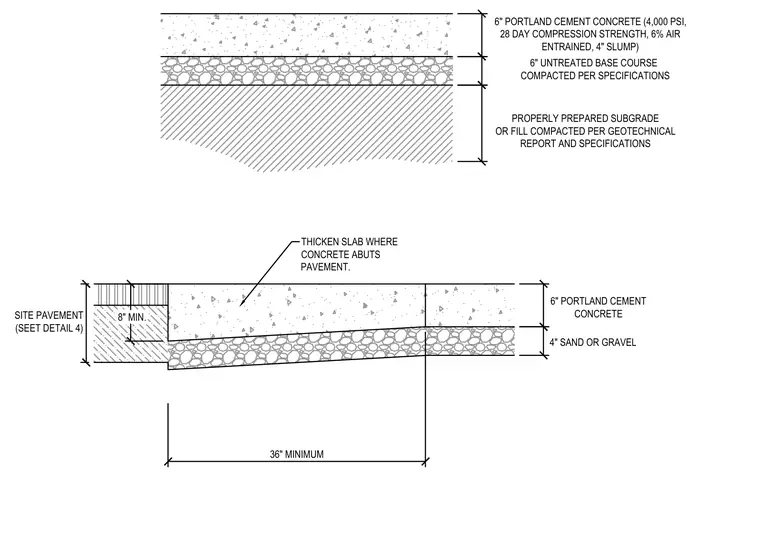

A concrete dumpster apron assembly features a six-inch Portland cement concrete slab rated for four thousand PSI compressive strength at twenty-eight days, six percent air entrainment, and a four-inch slump. The concrete bears on a six-inch untreated base course compacted per specifications, which sits over a properly prepared subgrade or fill compacted per geotechnical requirements. The slab is thickened to eight inches minimum where the concrete abuts site pavement over a four-inch sand or gravel layer extending a minimum of thirty-six inches.
