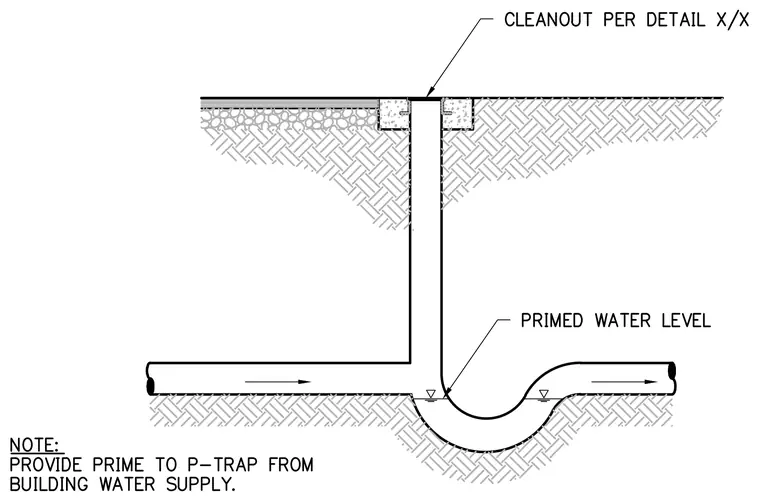

A horizontal drainage pipe transitions into a P-trap assembly set within compacted earth beneath the finish grade. A vertical riser extends upward from the trap to a surface cleanout assembly per detail X/X. A primed water level is maintained within the trap, supplied by a connection from the building water supply as specified in the general notes.
