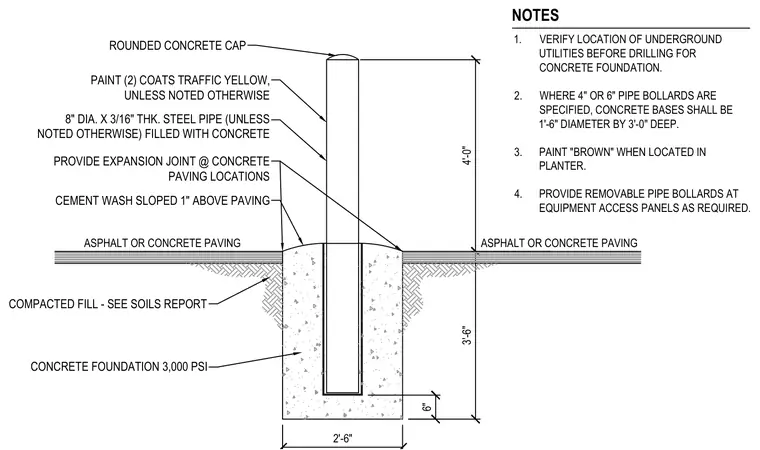

An eight-inch diameter by three-sixteenth-inch thick steel pipe is filled with concrete and topped with a rounded concrete cap. The pipe extends down into a three-thousand psi cast-in-place concrete foundation, surrounded by compacted fill and asphalt or concrete paving. A sloped cement wash provides drainage at the paving interface, where an expansion joint is installed. Two coats of traffic yellow paint finish the exposed steel pipe, unless otherwise specified.
ROUNDED CONCRETE CAP 4'-0" 3'-6" 2'-6" ASPHALT OR CONCRETE PAVING 8" DIA. X 3/16" THK. STEEL PIPE (UNLESS NOTED OTHERWISE) FILLED WITH CONCRETE COMPACTED FILL - SEE SOILS REPORT 6" PAINT (2) COATS TRAFFIC YELLOW, UNLESS NOTED OTHERWISE PROVIDE EXPANSION JOINT @ CONCRETE PAVING LOCATIONS CEMENT WASH SLOPED 1" ABOVE PAVING ASPHALT OR CONCRETE PAVING CONCRETE FOUNDATION 3,000 PSI 1. VERIFY LOCATION OF UNDERGROUND UTILITIES BEFORE DRILLING FOR CONCRETE FOUNDATION. 2. WHERE 4" OR 6" PIPE BOLLARDS ARE SPECIFIED, CONCRETE BASES SHALL BE 1'-6" DIAMETER BY 3'-0" DEEP. 3. PAINT "BROWN" WHEN LOCATED IN PLANTER. 4. PROVIDE REMOVABLE PIPE BOLLARDS AT EQUIPMENT ACCESS PANELS AS REQUIRED. NOTES
