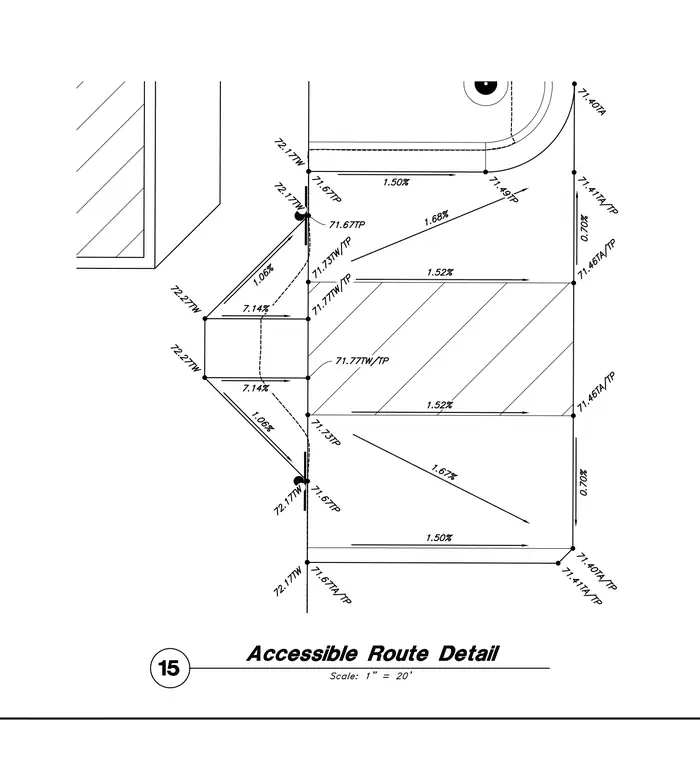

An accessible route grading and slope transition plan indicates spot elevations and cross-slopes ranging from 0.70% to 7.14%.
