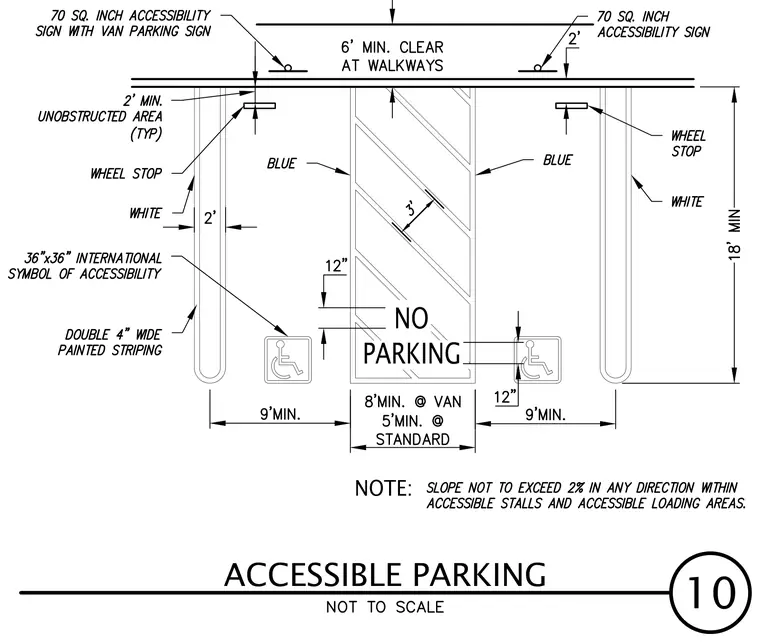

Accessible parking stall layout featuring an eight-foot minimum width for van accessible spaces and a five-foot minimum width for standard accessible spaces, flanked by nine-foot minimum vehicle stalls. The layout includes double four-inch wide painted striping, blue hatched access aisles, wheel stops, and 36-inch by 36-inch international symbols of accessibility painted on the pavement. Vertical signage includes 70 square inch accessibility signs with van parking signs positioned above walkways maintaining a six-foot minimum clear width. A note specifies that slopes must not exceed two percent in any direction within accessible stalls and loading areas.
