C-QXGJY — Curtain Wall Vertical Mullion Detail

Architectural · C-QXGJY

Curtain Wall Vertical Mullion Detail

Elements

About this detail

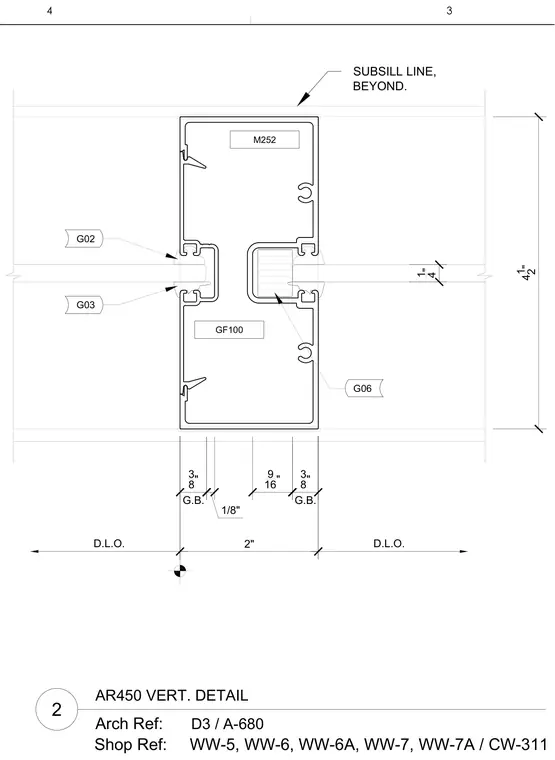

An aluminum curtain wall vertical mullion assembly connects glazing pockets with a subsill line beyond. The extrusion profile includes daylight opening dimensions and gasket references G02, G03, and G06. Dimensional callouts indicate a four and one-half inch overall height with specific glass bite and pocket clearances.

GF100 M252 SUBSILL LINE, BEYOND. 4 1 2 " 2" D.L.O. D.L.O. 3 8" G.B. 3 8" G.B. 9 16" 1/8" Arch Ref: 2 AR450 VERT. DETAIL D3 / A-680 G02 G03 Shop Ref: WW-5, WW-6, WW-6A, WW-7, WW-7A / CW-311 1 4 " G06 4 3

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
