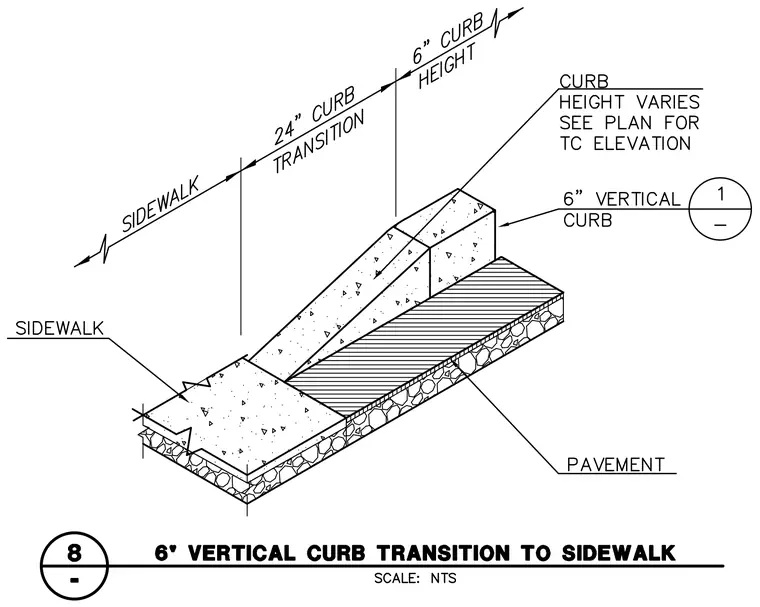

An isometric transition between a sidewalk and a vertical concrete curb with a variable curb height. The assembly has a six-inch vertical curb transitioning down via a twenty-four-inch curb transition section adjacent to a standard sidewalk and pavement structure. Aggregate base layers and subgrade conditions support both the concrete sidewalk and the paved roadway. Callouts indicate curb height variations and refer to plans for top-of-curb elevations.
