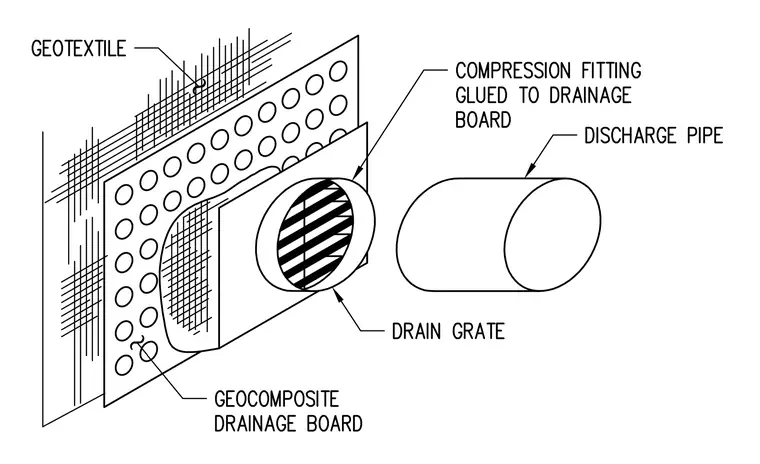

A geotextile fabric layer sits behind a geocomposite drainage board to filter fines while allowing water passage. A compression fitting is glued directly to the drainage board to receive a discharge pipe. A drain grate covers the connection point to prevent debris entry.
