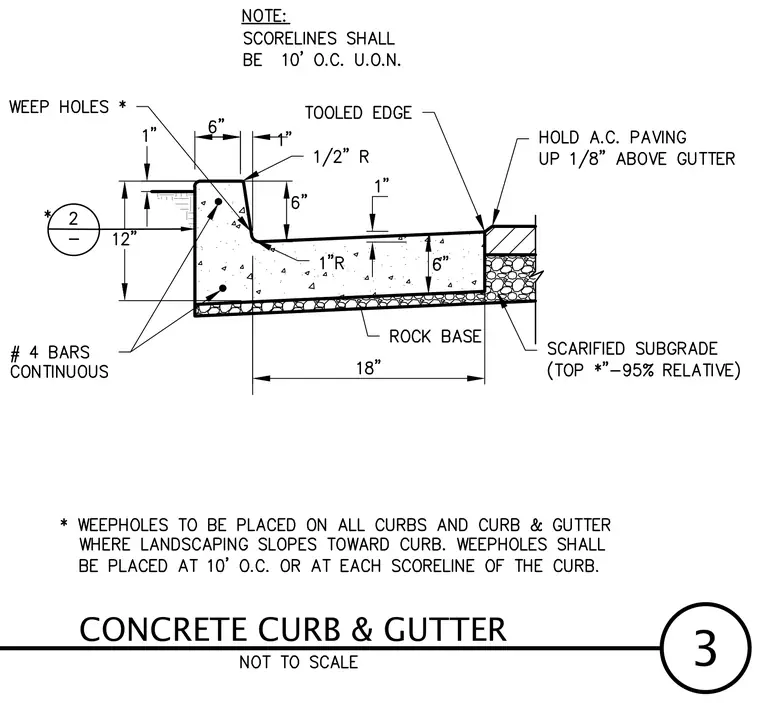

This cast-in-place concrete curb and gutter assembly features a twelve-inch total height profile with a six-inch curb face and an eighteen-inch gutter width. The concrete profile is reinforced with continuous number four rebar and rests on a prepared rock base over a scarified subgrade compacted to ninety-five percent relative density. The gutter edge interfaces with asphaltic concrete paving held one-eighth inch above the gutter surface. Scorelines are spaced at ten feet on center unless otherwise noted, and weepholes are provided where landscaping slopes toward the curb.
