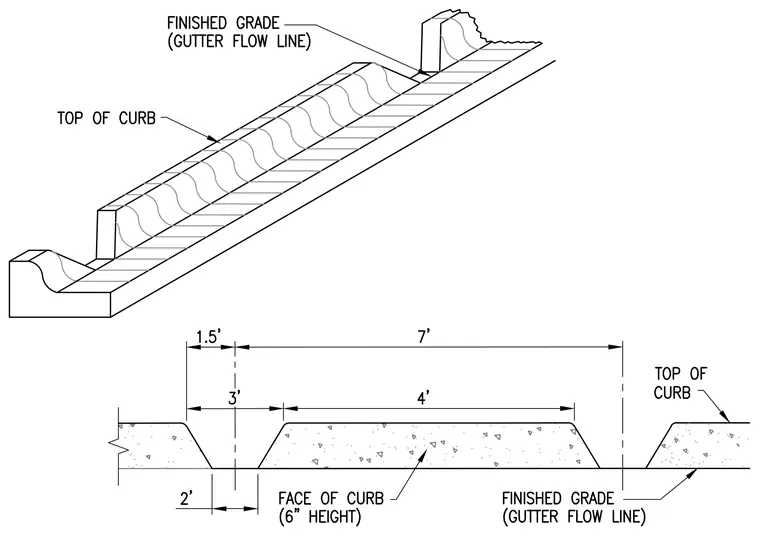

A concrete curb features a drainage opening aligned with the gutter flow line and finished grade. The profile shows a curb height of 6 inches with sloped transitions. Dimensions indicate a 2-foot drainage opening width centered within a 7-foot section, flanked by a 1.5-foot and 3-foot offset layout.
